2027 John Deere Construction 324 P-Tier

Call or Click for Quote

3038412299

Apply for financing

Get Quote

 Schedule a Test Drive Value your Trade Ask Us Anything

Get in Touch

    Description

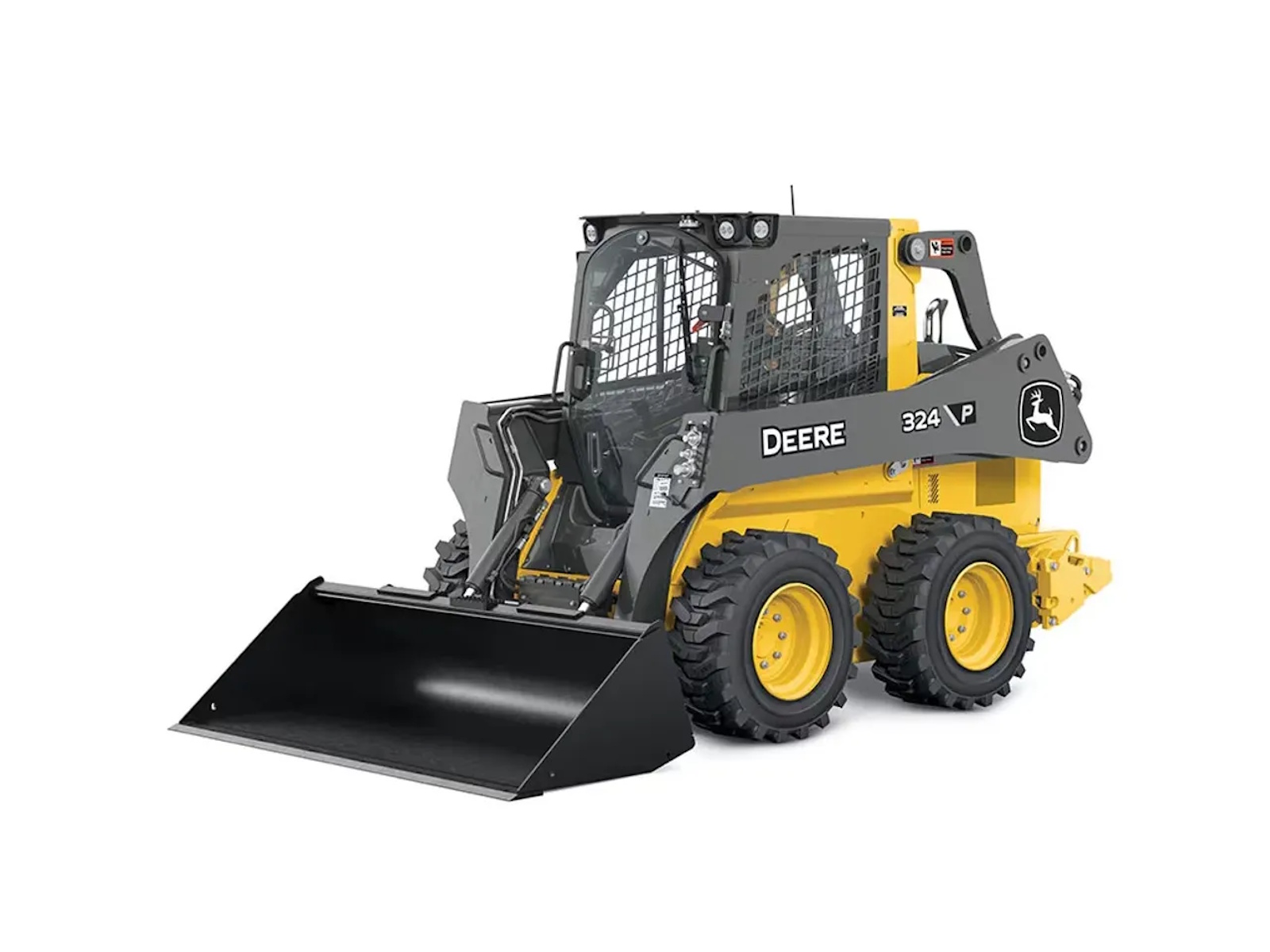

    2027 John Deere Construction 324 P-Tier

    The 324 P-Tier delivers more productivity and versatility on the jobsite, with attachment capability, operator comfort, strong visibility, and easy service access that help customers work efficiently and keep downtime low.

    Versatile Hydraulics & Attachment Capability
    Responsive hydraulics and compatibility with a wide range of attachments allow the 300 Series P‑Tier to adapt easily to changing tasks on the jobsite.

    Redesigned Cab and Improved Visibility
    A sealed, pressurized cab with increased glass area improves visibility and reduces noise, while optional comfort upgrades help operators stay focused during long workdays.

    Maximize Uptime With Easy Service Access
    Easy serviceability minimizes downtime: the hood and side panels provide quick ground-level access to daily checks, and the cab swings up in under 5 minutes for major drivetrain access. JDLink™ alerts also help catch issues early.

    Info

    Industry

    Heavy Equipment

    Make

    John Deere Construction

    Model

    324 P-Tier

    Trim

    Base

    Year

    2027

    MSRP

    N/A

    Category

    Skid Steer Loader

    Subcategory

    General

    Specs

    Family

    Yanmar®

    Cylinders

    4

    Power/Horsepower

    (SAE J1349, ISO 9249) At 2500 RPM (HP): 70.4 hp | Rated Gross Power (ISO 14396) At 2500 RPM (HP): 73.5 hp

    Torque

    206.52 lb-ft | Rise At 1800 RPM (percent): 34.0 %

    Displacement

    202.54 cu in.

    Notes

    Rated Engine Speed (RPM): 2500.0 rpm | Aspiration: Turbocharged | Air Cleaner: Dry dual element | Fan Drive Type: Variable speed hydraulic | Pump Type: Hydrostatic-manual or electrohydraulic | Tractive Effort (lbf): 7491.0 lbf | Final Drive: Chains high strength, adjustment free | Parking Brake Type: Integral, automatic, spring applied, hydraulically released wet-disk park brake | Standard Pump Flow (gpm): 20.7 gpm | System Pressure At Couplers (psi): 3450.0 psi | Hydraulic Horsepower Standard Flow (calculated) (hp): 41.67 hp | Hydraulic Horsepower High Flow (calculated) (hp): 56.13 hp | Voltage (V): 12.0 V | Structure Rollover Protection Structure: (ROPS) [ISO3471] Falling Object Protection Structure (FOPS) [ISO3449)] structure with quick pivot | Auxiliary Hydraulics: Digital | Diagnostics: Digital | Fuel Gauge: Gauge | Hourmeter: Digital | Hydraulic Oil Filter Restriction: Indicator light | Hydraulic Oil Temperature: Indicator light, audible warning, digital | Seat Belt Reminder: Indicator light | Warm-Up Indicator: Digital | Dump Reach, Foundry Bucket (in.): 29.9 in. | Dump Reach, Foundry Bucket (ft in.): 2,6 ft, in. | Dump Reach, Construction Bucket (in.): 37.3 in. | Dump Reach, Construction Bucket (ft in.): 3,1 ft, in. | Angle Of Departure Degree: 28.0 degree (angle) | Front Turn Radius, Foundry Bucket (in.): 79.6 in. | Front Turn Radius, Foundry Bucket (ft in.): 6,8 ft, in. | Dump Angle (Full Lift Height) Degree: 41.0 degree (angle) | Bucket Rollback (Ground Level) Degree: 34.0 degree (angle) | Advertised Tipping Load (lb): 5380.0 lb. | Advertised SAE Rated Operating Capacity (lb): 2690.0 lb. | Rated Operating Capacity With Counterweight (lb): 2850.0 lb. | Boom Breakout Foundry Bucket (lb): 5250.0 lb. | Bucket Breakout Force Foundry Bucket (lb): 8750.0 lb. | Bucket Breakout Construction Bucket (lb): 4750.0 lb. | Bucket Breakout Force Construction Bucket (lb): 6000.0 lb.

    Travel Speed (Max)

    Travel Speed Low (mph): 6.9 mph | Travel Speed High (mph): 11.1 mph

    Battery

    750.0 CCA | Voltage: Digital

    Alternator

    75.0 amp | Low Voltage: Indicator light

    Engine

    Air Filter Restriction Indicator: Indicator light | Coolant Temperature: Indicator light, audible warning, gauge, digital | Oil Pressure: Indicator light, audible warning | RPM Indicator: Digital

    Brakes

    Park Brake Engaged: Indicator light

    Tires

    12 x 16.5 12 PR SKS

    Fuel Capacity

    21.0 gal.

    Weight (Dry)

    7700.0 lb.

    Length

    Without Bucket (in.): 112.3 in. | Without Bucket (ft, in.): 9,4 ft, in. | With Foundry Bucket (in.): 136.3 in. | With Foundry Bucket (ft in.): 11,4 ft, in.

    Width

    Without Bucket (in.): 67.0 in. | Without Bucket (ft in.): 5,7 ft, in.

    Height

    To Top Of Rollover Protective Structure (ROPS) (in.): 81.1 in. | To Top Of Rollover Protective Structure (ROPS) (ft in.): 6,9 ft, in. | To Hinge Pin (in.): 126.0 in. | To Hinge Pin (ft in.): 10,6 ft, in. | Dump Height, Foundry Bucket (in.): 97.7 in. | Dump Height, Foundry Bucket (ft in.): 8,6 ft, in.

    Wheelbase

    44.2 in. (3,8 ft, in.)

    Ground Clearance

    8.1 in. (0,8 ft, in.)

    Fuel Type

    Diesel
