2027 John Deere 2230LL
Get in Touch
Description
2027 John Deere 2230LL

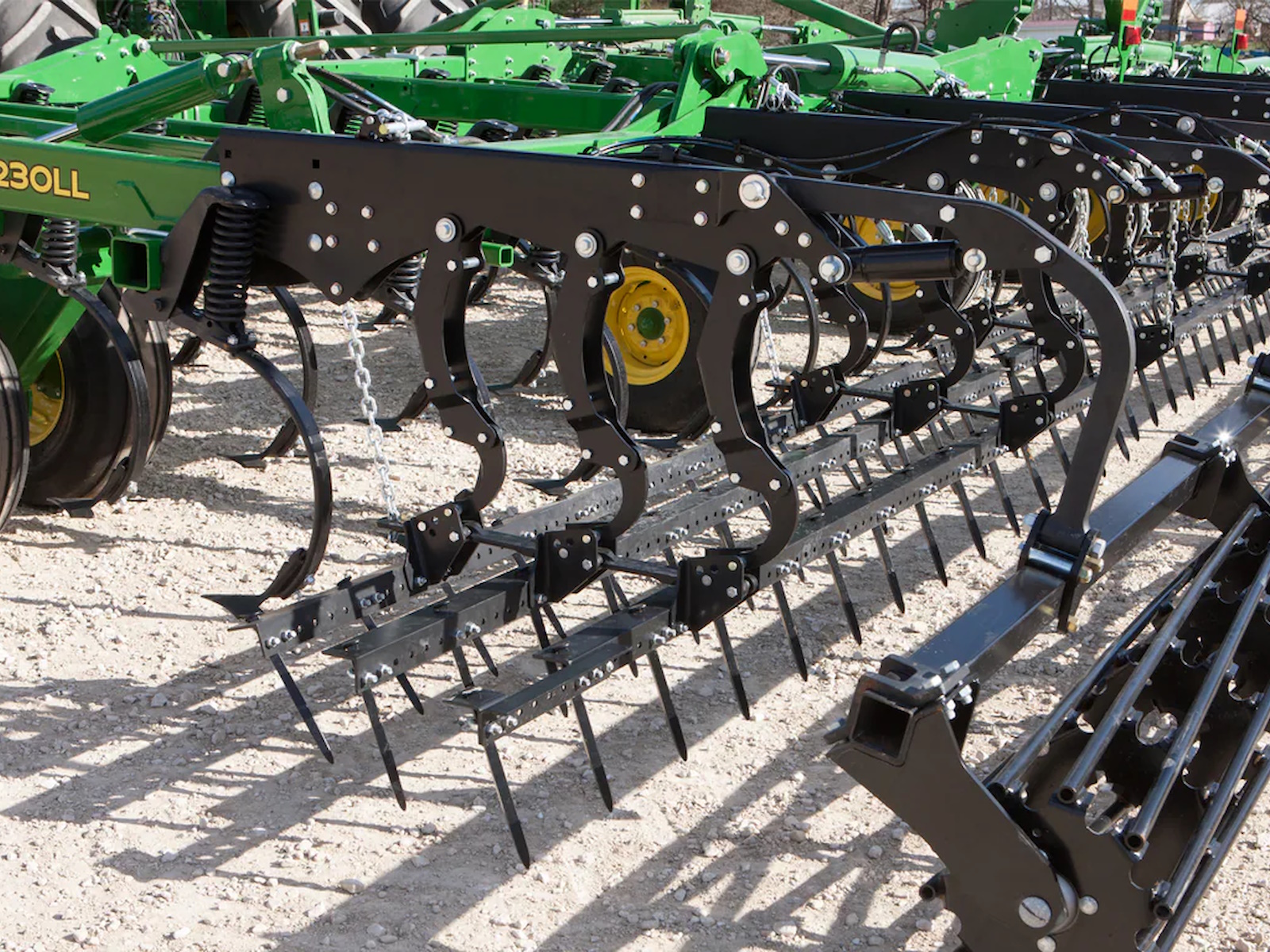

2230LLLevel-Lift™ Field Cultivator
- Working widths from 23 ft, 6in. to 60 ft, 6 in. (7.2 to 18.4 m)
- Three- and five-section configurations
- Lattice-style frame design
Features may include:
- Autonomy ready tillage
- Wide range of working widths available to match acreage and horsepower requirements
- Level-lift™ frame ensures even operation through all operating depths
- True 152-mm (6-in.) split-the-middle spacing provides complete field coverage
- ProFinish™ Leveling System offers wide range of rear harrows to meet agronomic needs
- Wing stabilizer wheels ensure steady and consistent operation
- Rear hitch compatible with all 2230 configurations and rear harrows
- Low-transport configurations available for 2230LL
Info
Industry
Agriculture
Make
John Deere
Model
2230LL
Trim
Base
Year
2027
MSRP
N/A
Category
Tillage
Subcategory
Cultivator
Specs
Width
Working Widths Option 1: 23.5 ft | Option 2: 25.5 ft | Option 3: 27.5 ft | Option 4: 29.5 ft | Option 5: 31.5 ft | Option 6: 33.5 ft | Option 7: 35.5 ft | Option 8 Low Transport: 38.5 ft | Option 9 Low Transport: 43.5 ft
Notes
Operating speed: 6 to 10 mph | Hitch Type Level-lift: 6x10 in T-hitch, cast-steel hitch link, optional rear hitch | Frame Tubing Rank tubes: 4x4 in Center frame fore-aft tubes - For 5 rank: 2x6 in. Center frame fore-aft tubes - For 6 rank: 2x8 in | Tongue weight rating Vertical weight: 1,500 lbs
Interior
Operating depth: 5 in
Power/Horsepower
Horsepower per foot: 8 to 12 hp/ft
Wheels
Option 1: (4) IF280/70 R15 134D tires | Option 2: (4) IF280/70 R15 134D tires | Option 3: (4) IF280/70 R15 134D tires | Option 4: (4) IF280/70 R15 134D tires | Option 5: (4) IF280/70 R15 134D tires | Option 6: (4) IF280/70 R15 134D tires | Option 7: (4) IF280/70 R15 134D tires | Option 8: (4) IF320/70 R15 144D tires | Option 9: (4) IF320/70 R15 144D tires
