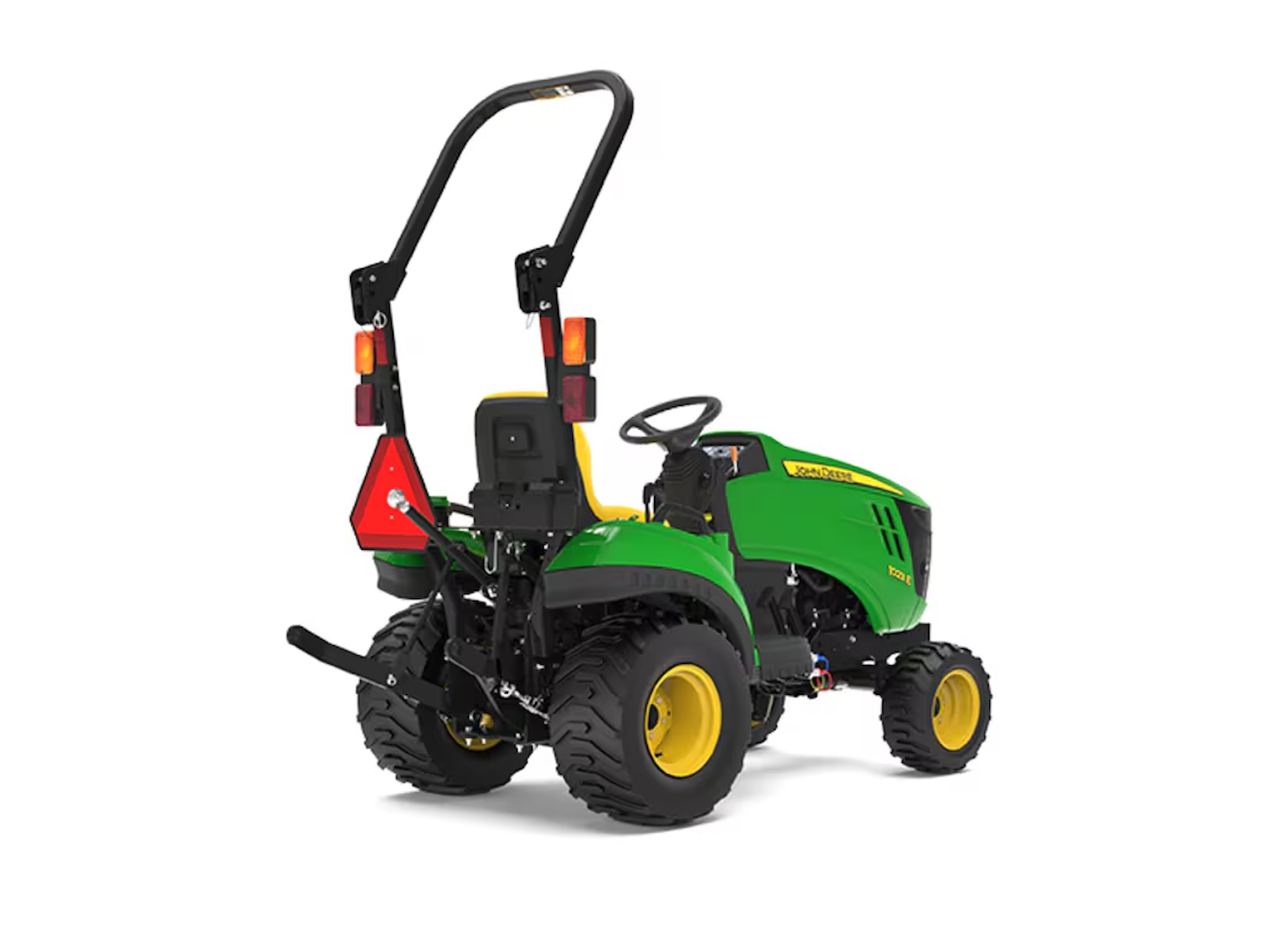

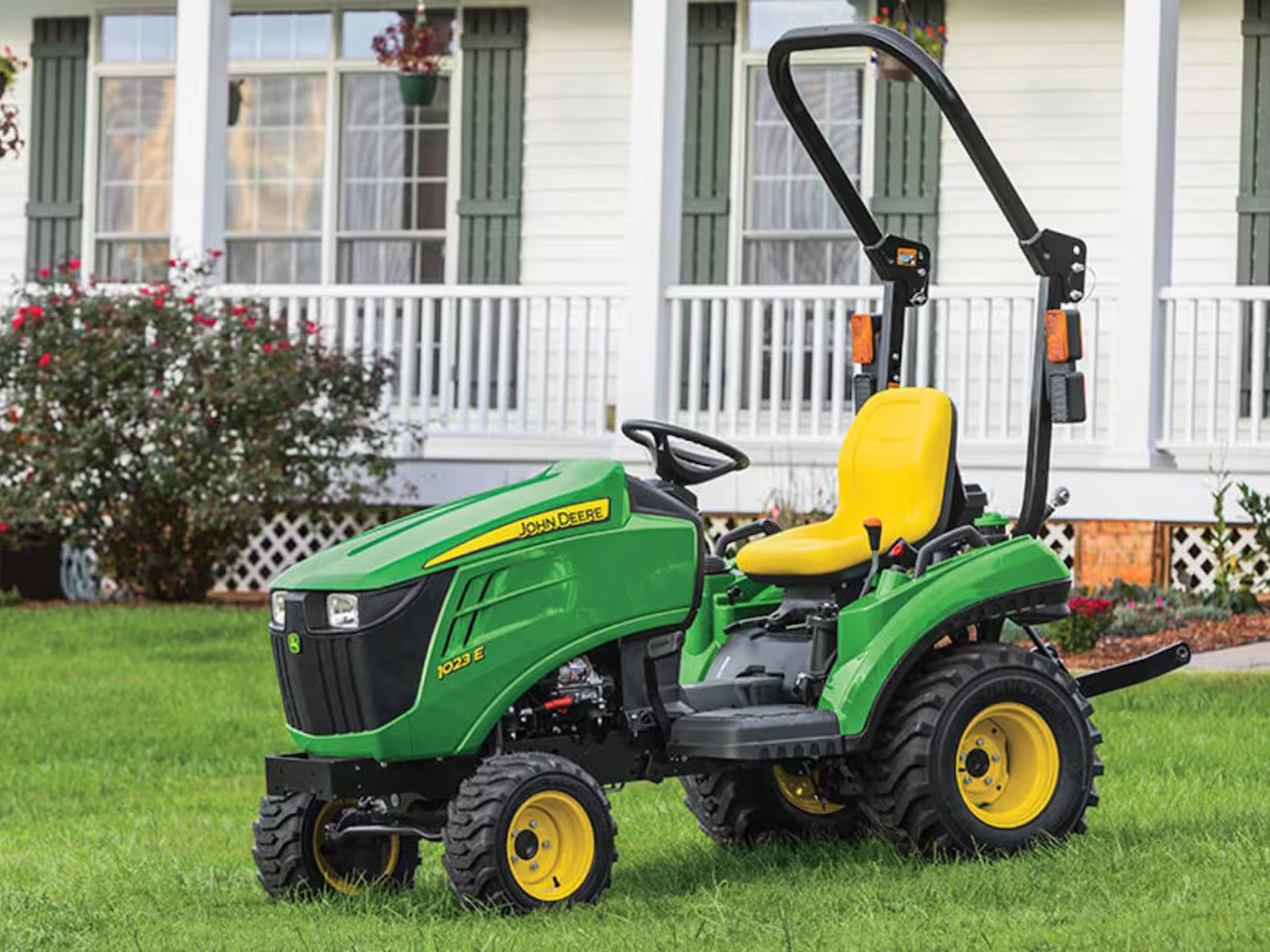

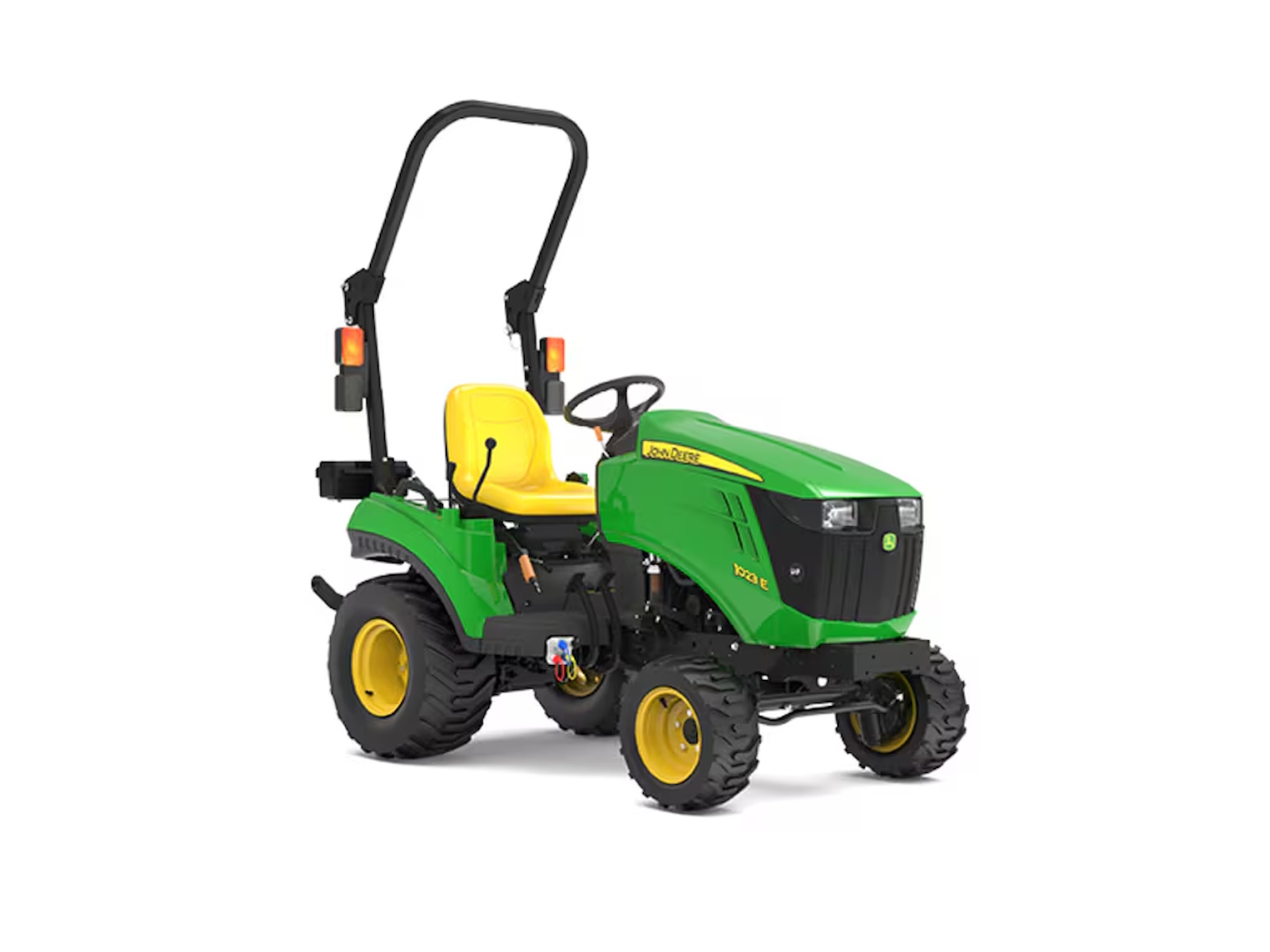

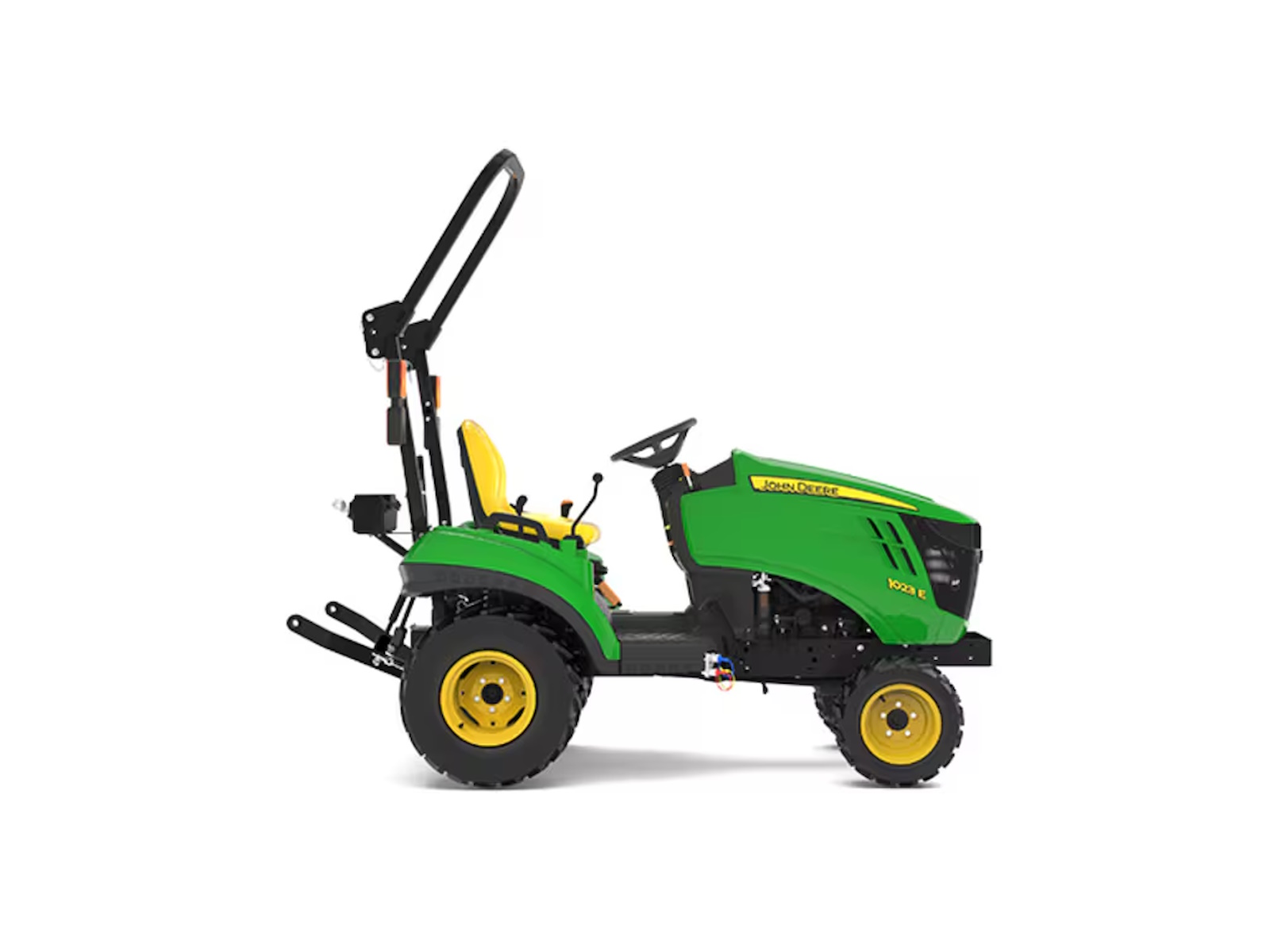

2026 John Deere AG 1023E

• Powerful Final Tier 4-compliant diesel engine
• AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
• Assembled in Georgia

Features May Include:

Spend more time working and less time switching equipment with easy implement swaps

Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.

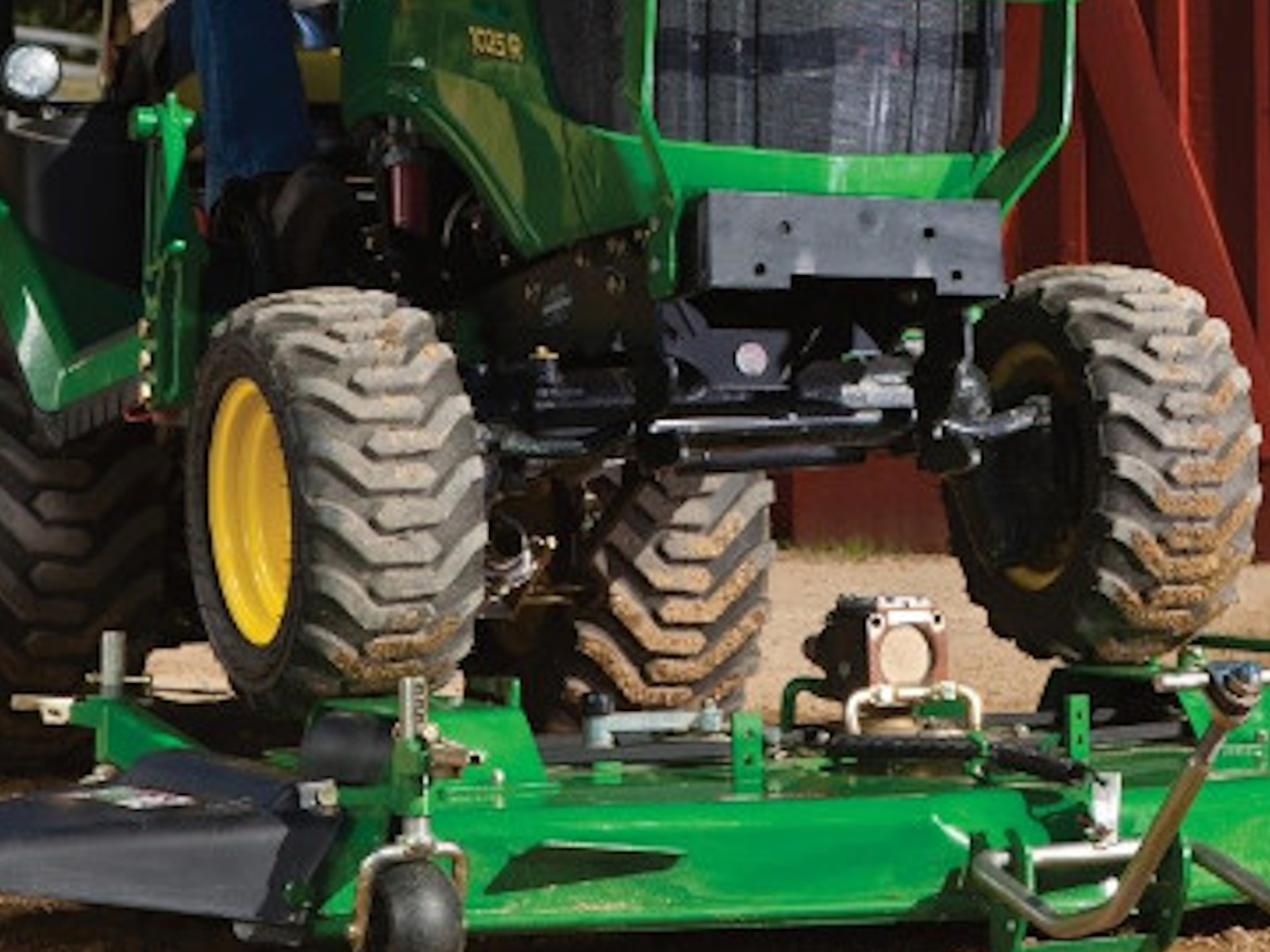

• AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
  • Load-N-Go attachment: Easily move your 54D or 60D AutoConnect Deck with your John Deere Loader after it has been disconnected from the tractor with the Load-N-Go ramps.

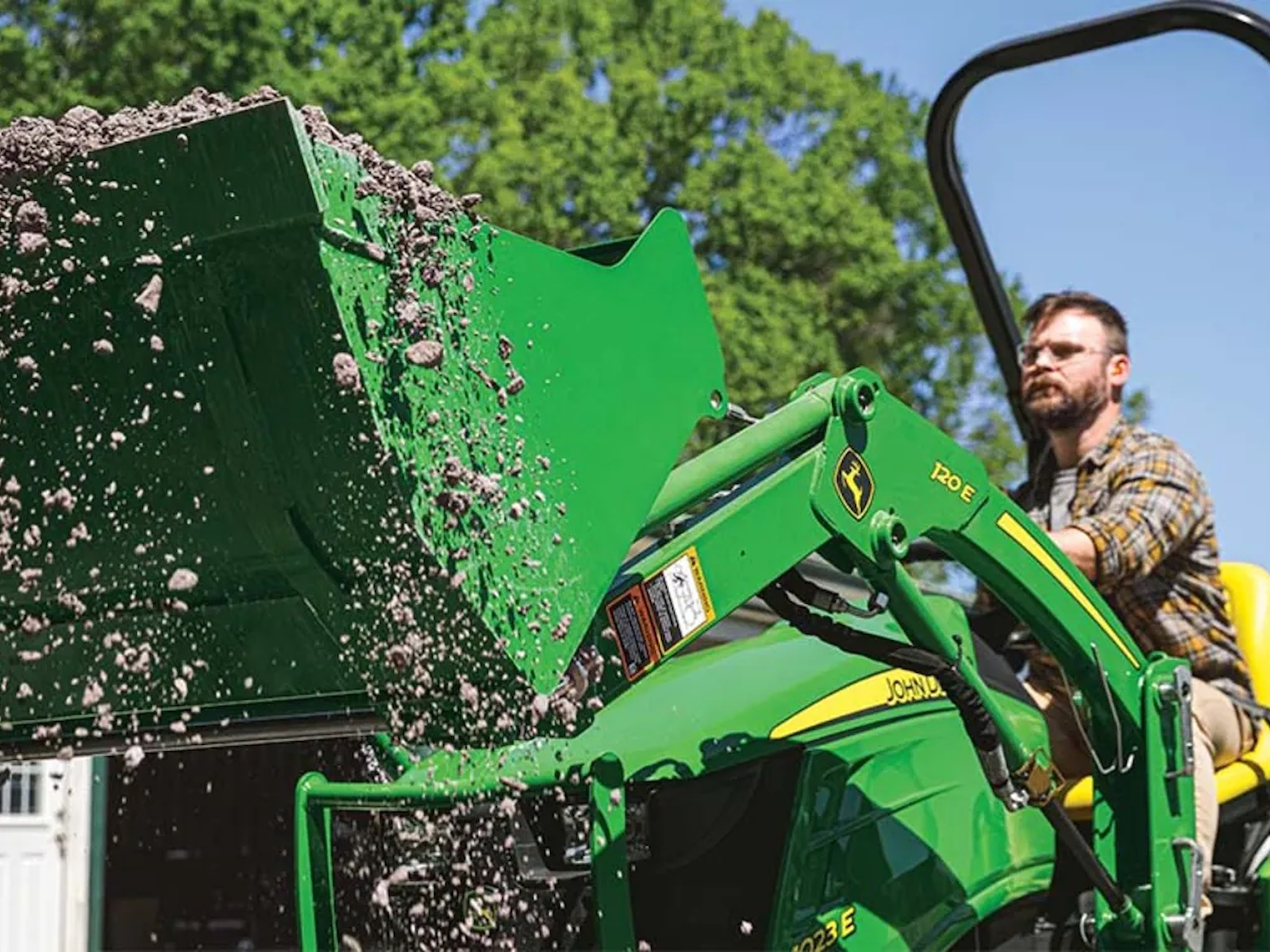

• Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
• Quik-Tatch™ front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
• iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
  • Position control hitch: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
• Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.

1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased

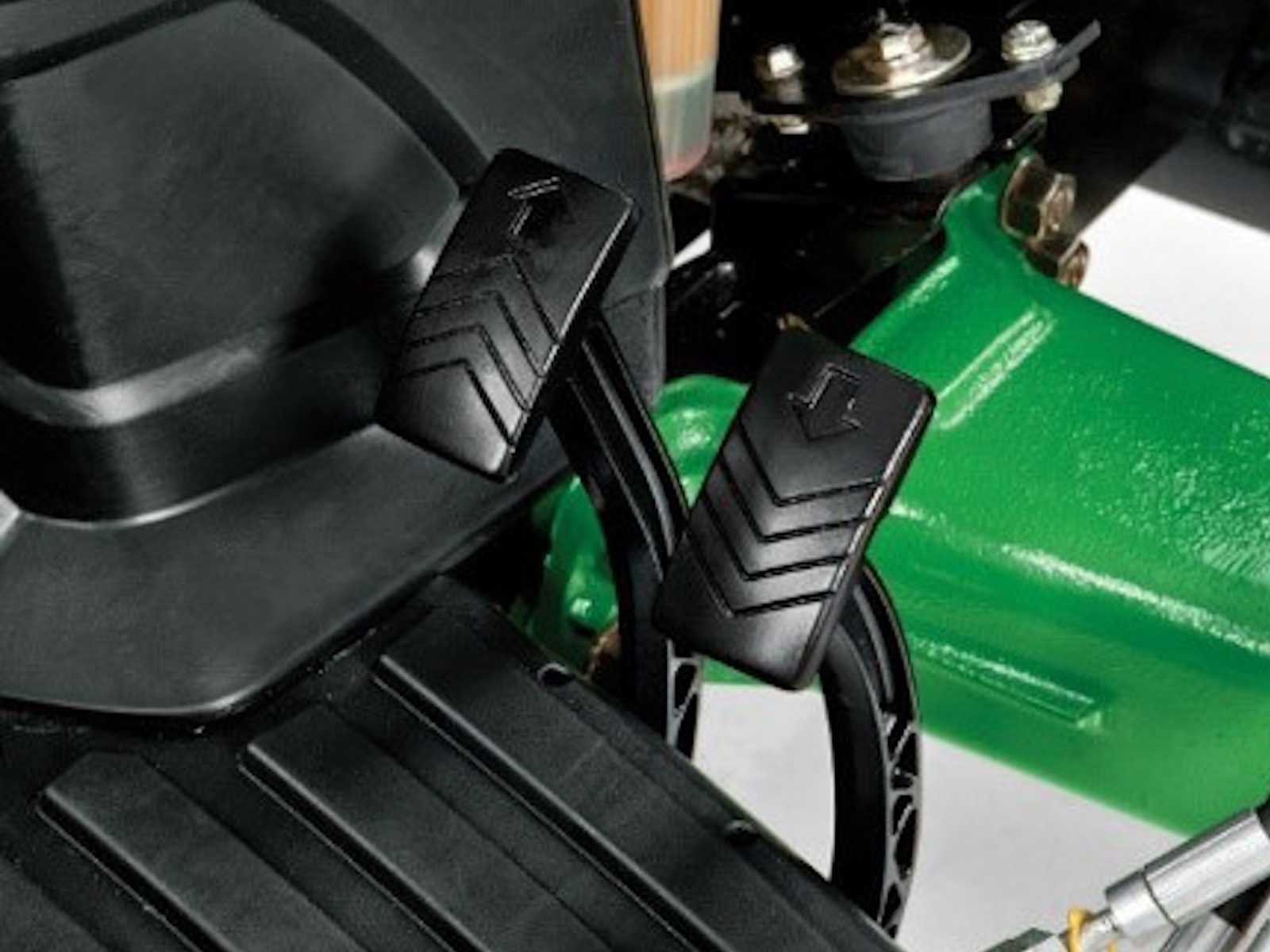

Quickly and easily change speed and directions with Twin Touch foot controls and Hydrostatic transmission (HST)

The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.

• Ideal for loader or mower applications where frequent direction and speed changes are needed
• No clutching for fast direction changes
• Match the job at hand with infinite ground speeds

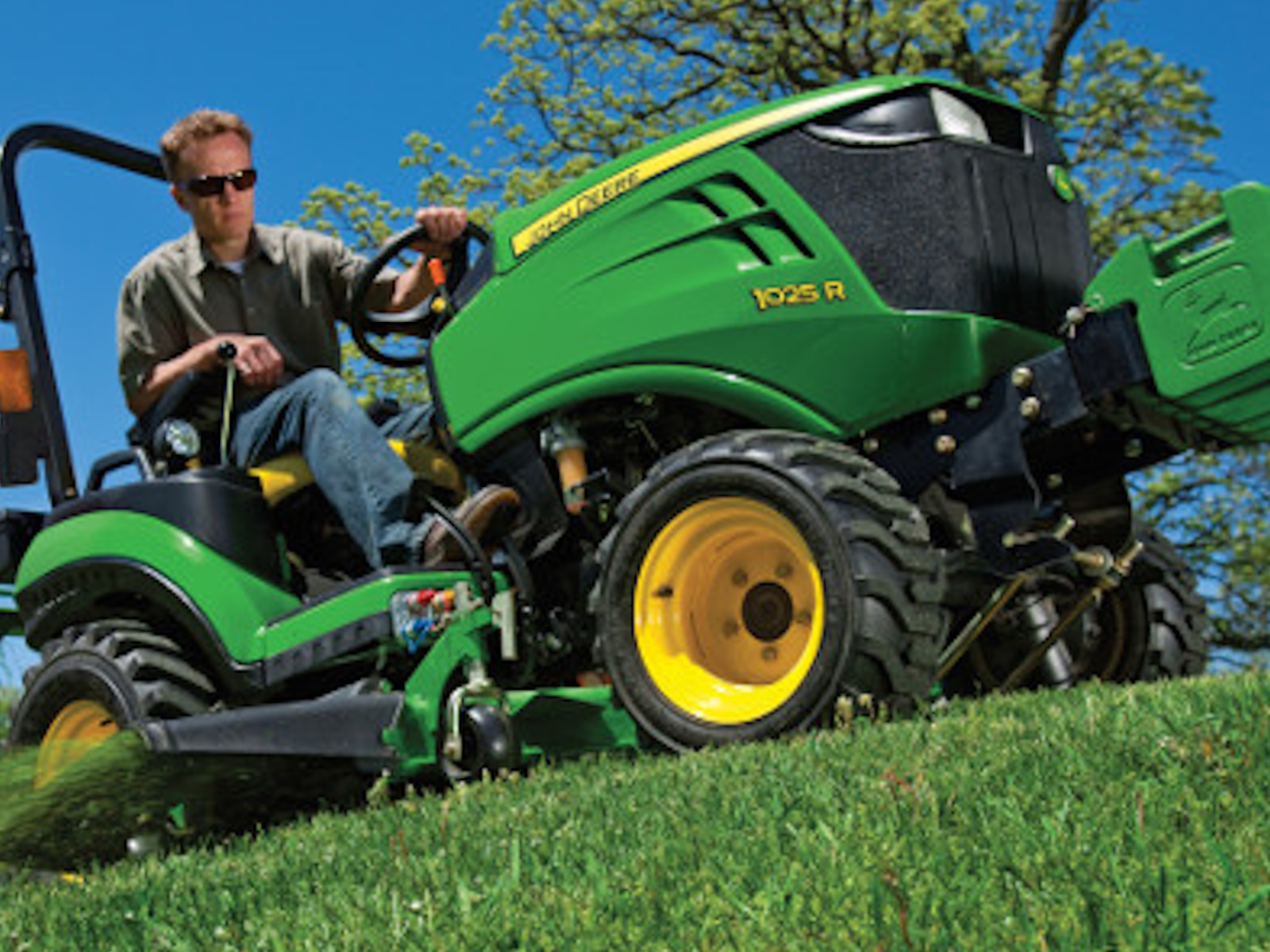

Excellent maneuverability and easy operation with standard four-wheel drive (4WD) and power steering

Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.

• Narrow overall width allows you to work in tight areas where most compact tractors just cannot fit. The 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all types of terrain.
• Power steering means fewer turns of the steering wheel than manual steering, which is especially valuable when mowing around obstacles or during front loader work.
• High horsepower-to-weight ratio makes the 1 Family Tractors a good choice for a variety of tasks. The overall tractor weight reduces ground compaction and makes them excellent for mowing.
• The fully-independent power take-off (PTO) allows engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

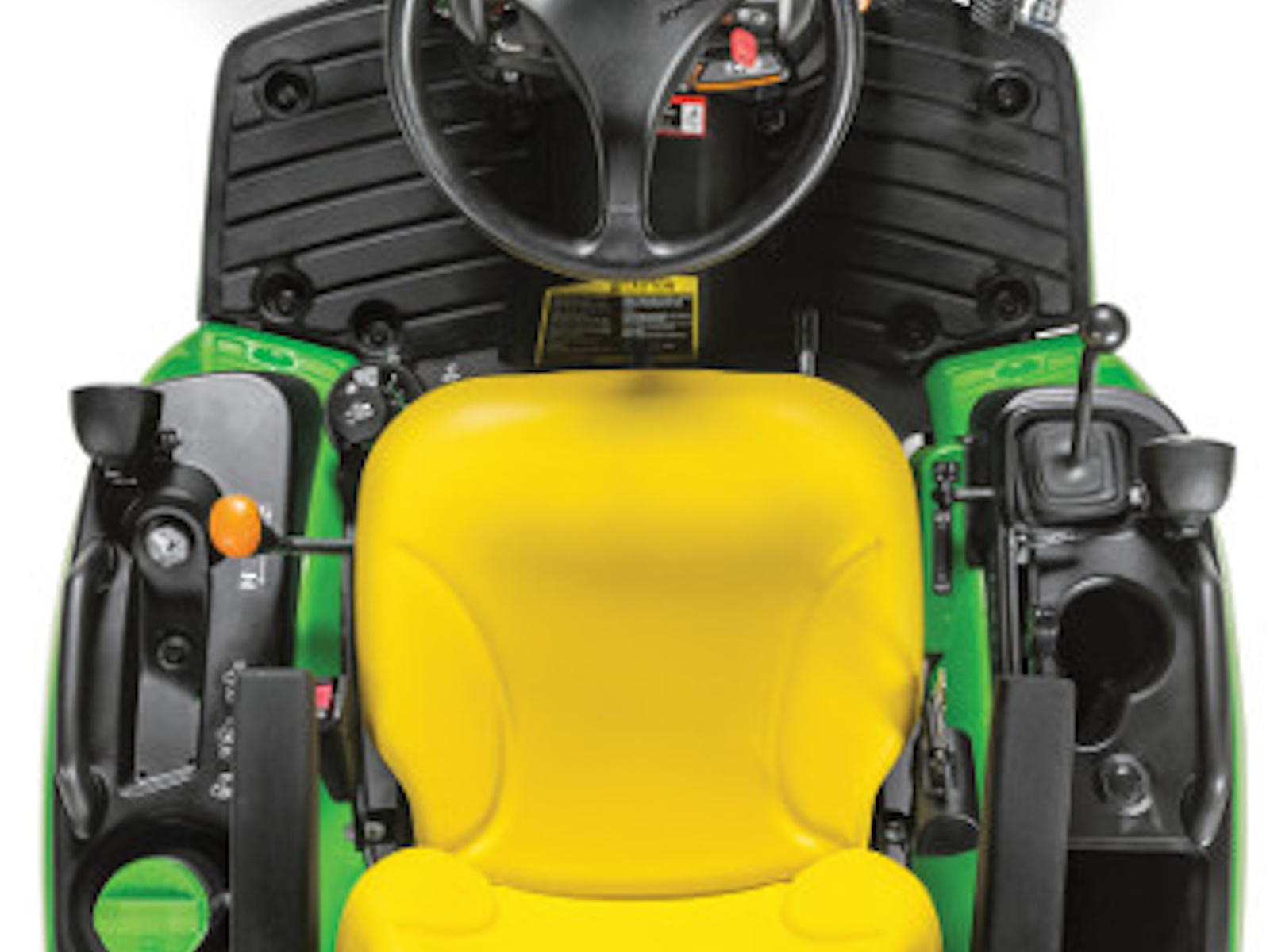

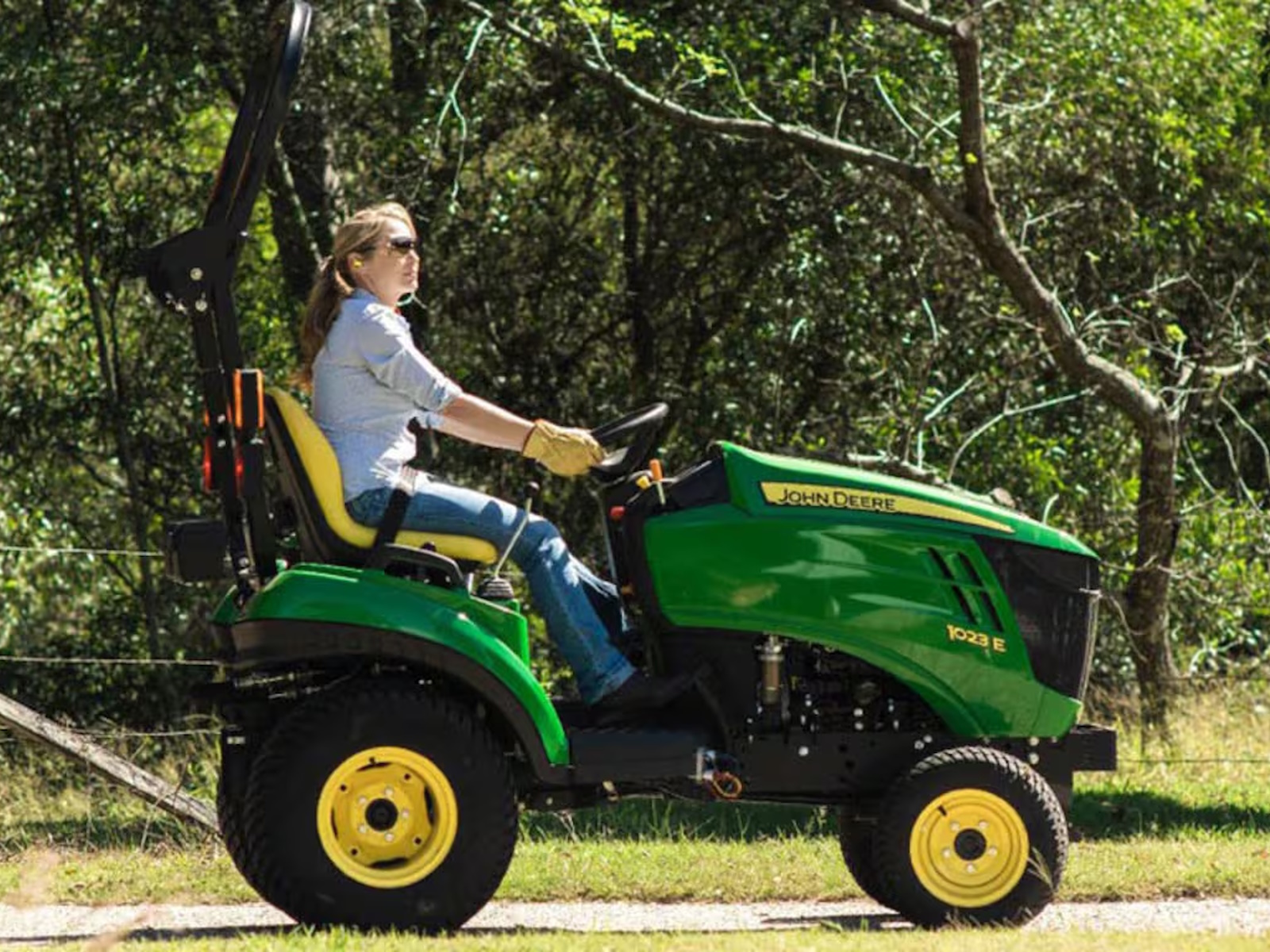

Comfortable and convenient open operator’s station

• The 1023E open operator station is designed for greater comfort and increased visibility.

Comfortable operation

• Thick, textured rubber floor mat reduces vibrations and absorbs shock and noise.
• Step-through flat platform and fender-mounted handrails make it easy to get on and off the tractor from either side.
• Controls are conveniently located next to the fenders and are color-coded for quick identification.
• Easy-lift hood with dual gas-charged lift struts as standard equipment. A simple flip of the latch lets you open the rugged composite hood, providing wide open access to the engine compartment.

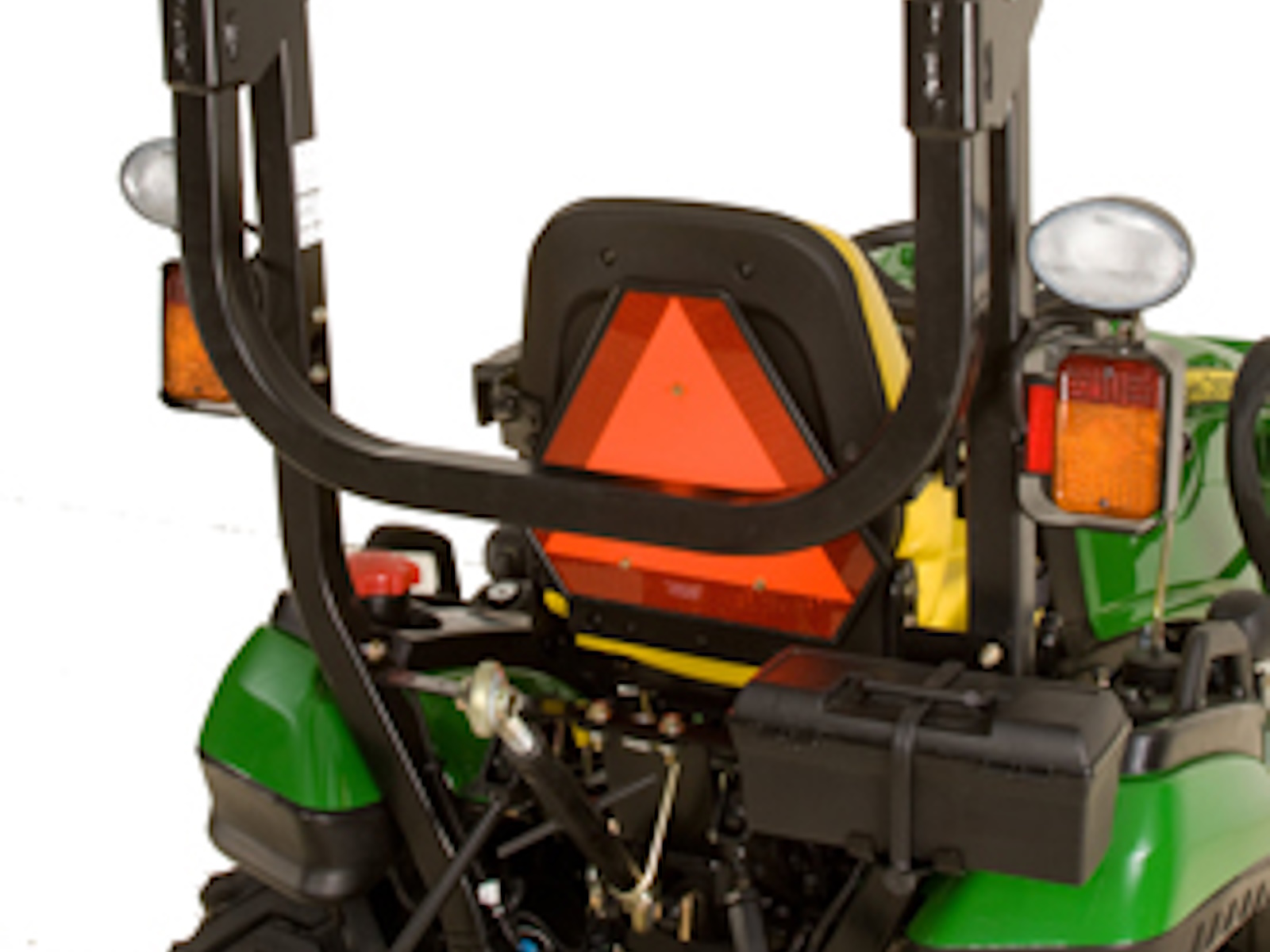

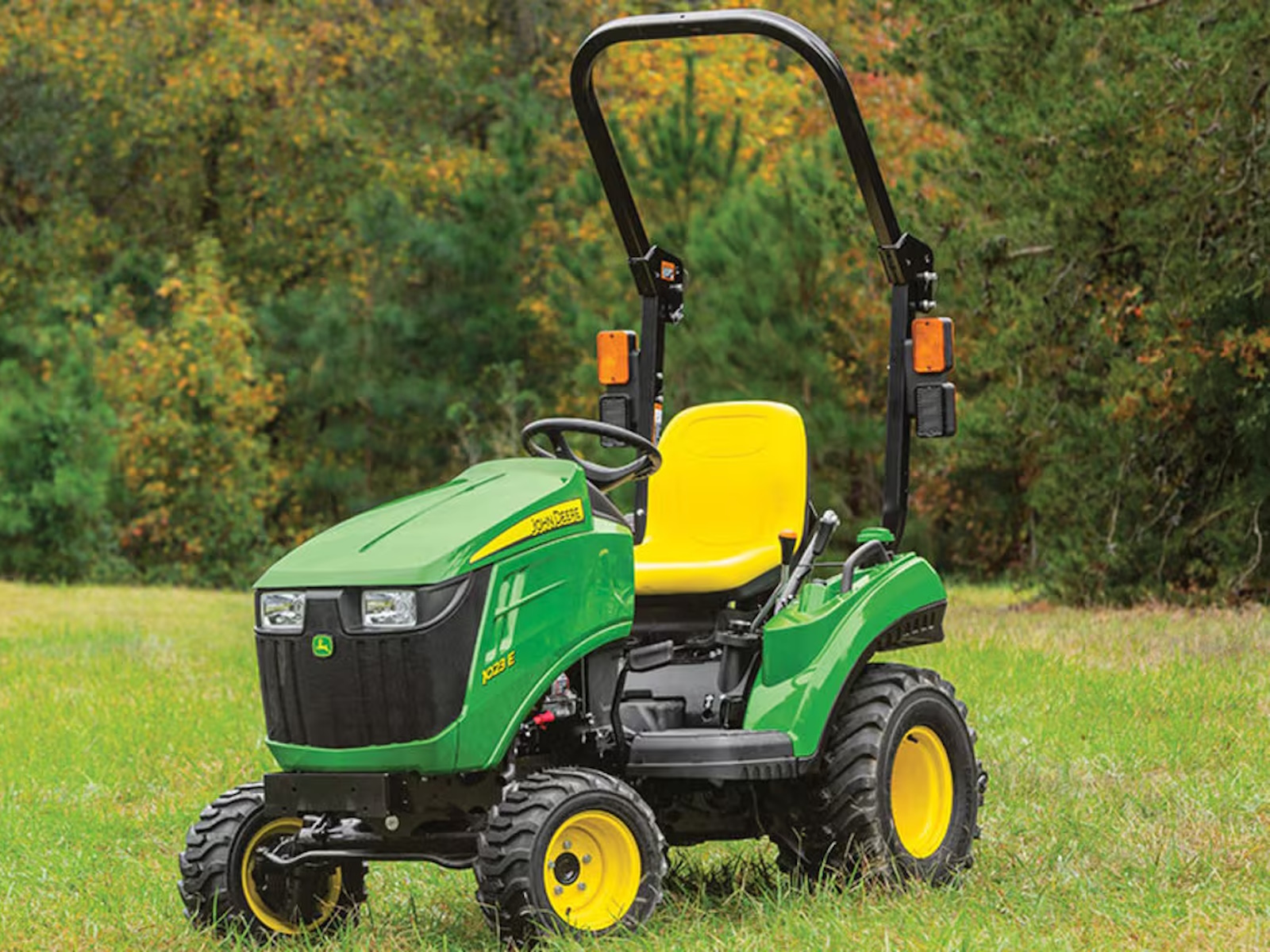

• Foldable rollover protective structure (ROPS) keeps you protected during operation and improves the ability to store tractor in a garage.

Foldable Roll-Gard™ ROPS is standard equipment on 1023E.

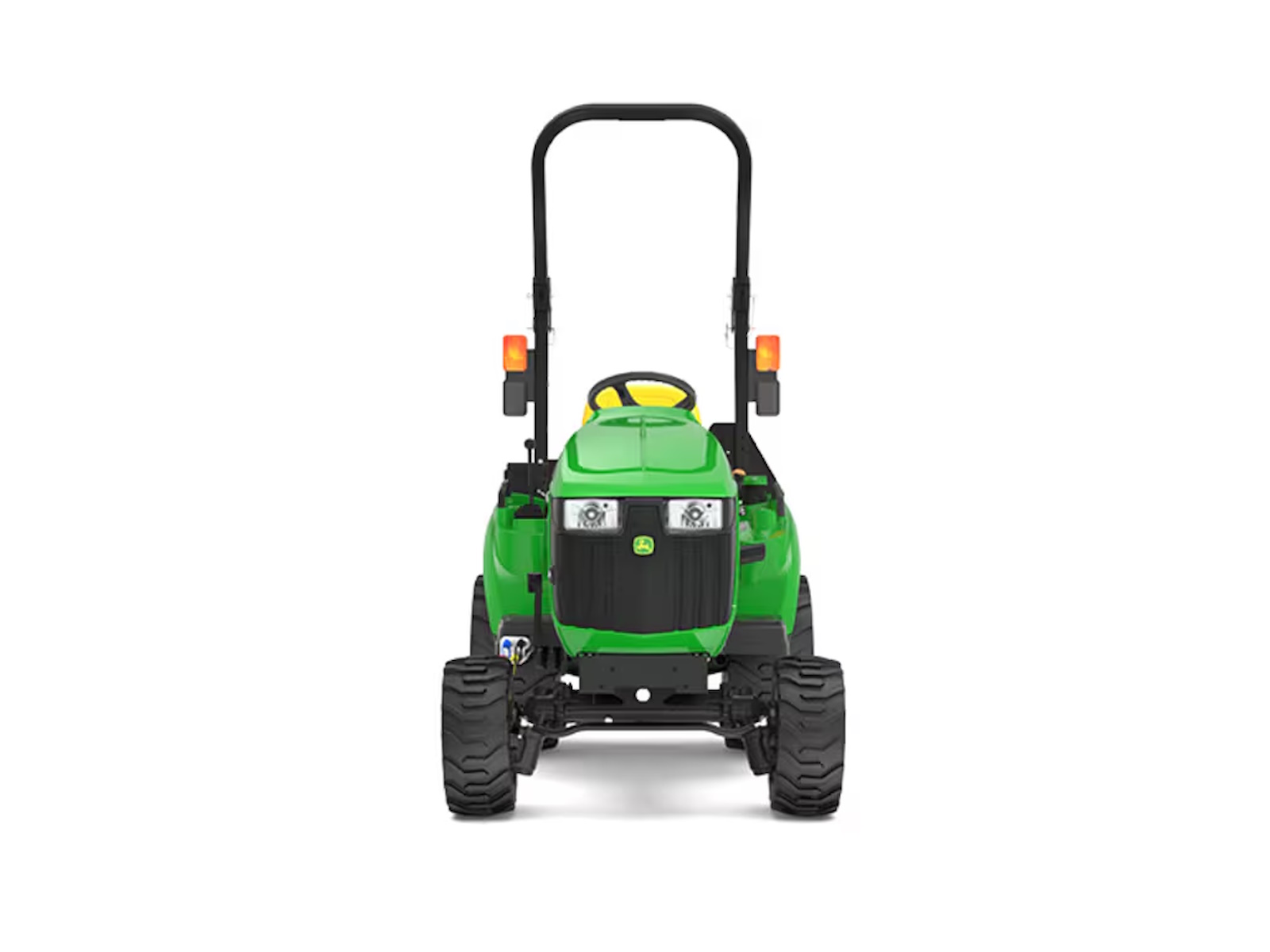

• Sloping hood design provides improved visibility especially during front loader work

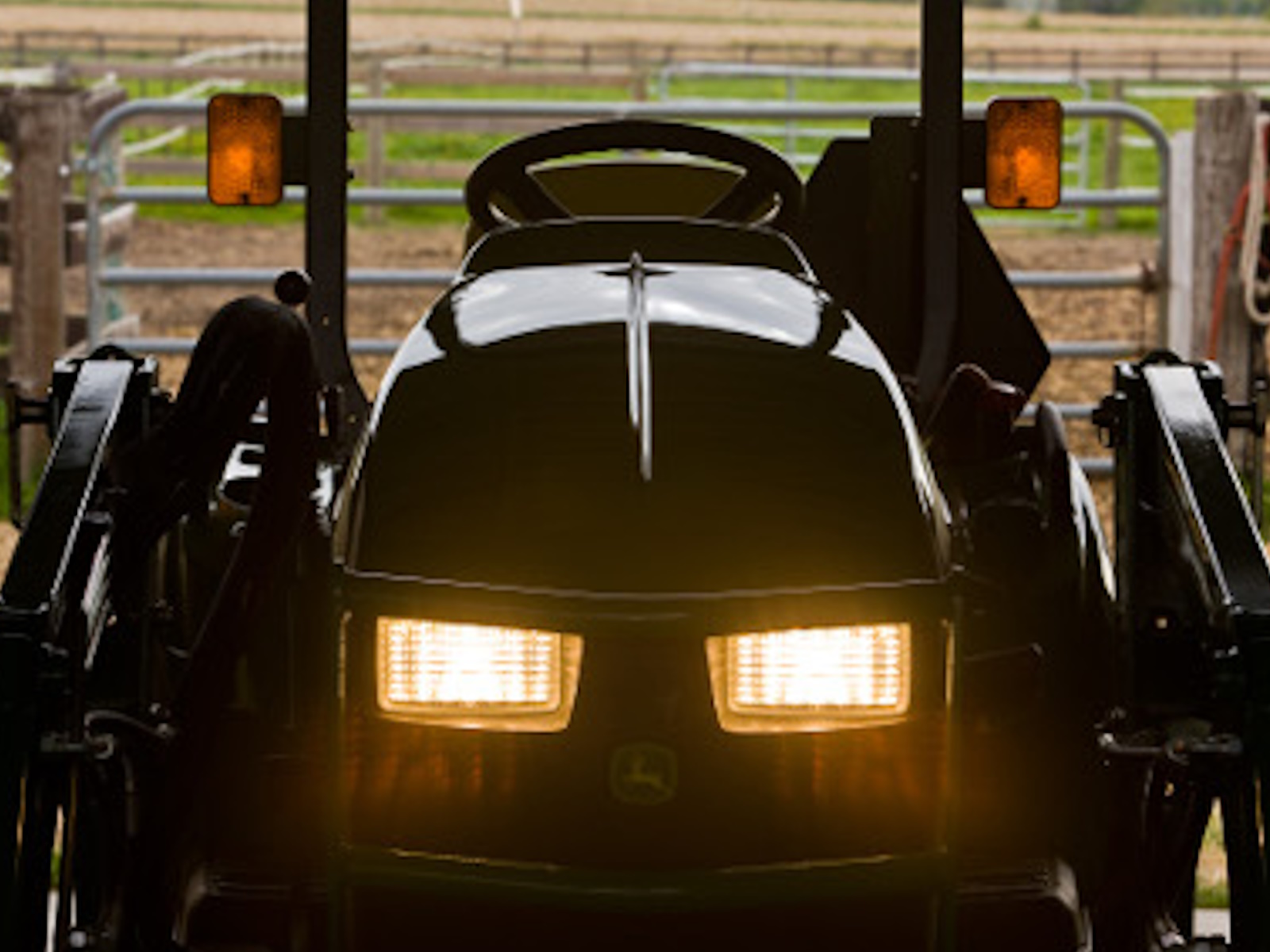

• Standard lighting equipment allows you to work from early in the morning to late at night:
  • Two front-mounted sealed-beam halogen headlights
  • Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
  • Built-in tail light on one warning/hazardous light
  • Additional front- and rear-light kits are available

Updated instrumentation is standard equipment for operating convenience and confidence. Instrumentation includes:

• Tach/hour meter
• Oil-pressure indicator light
• Alternator-indicator light
• Flashing-warning lights
• Coolant-temperature light

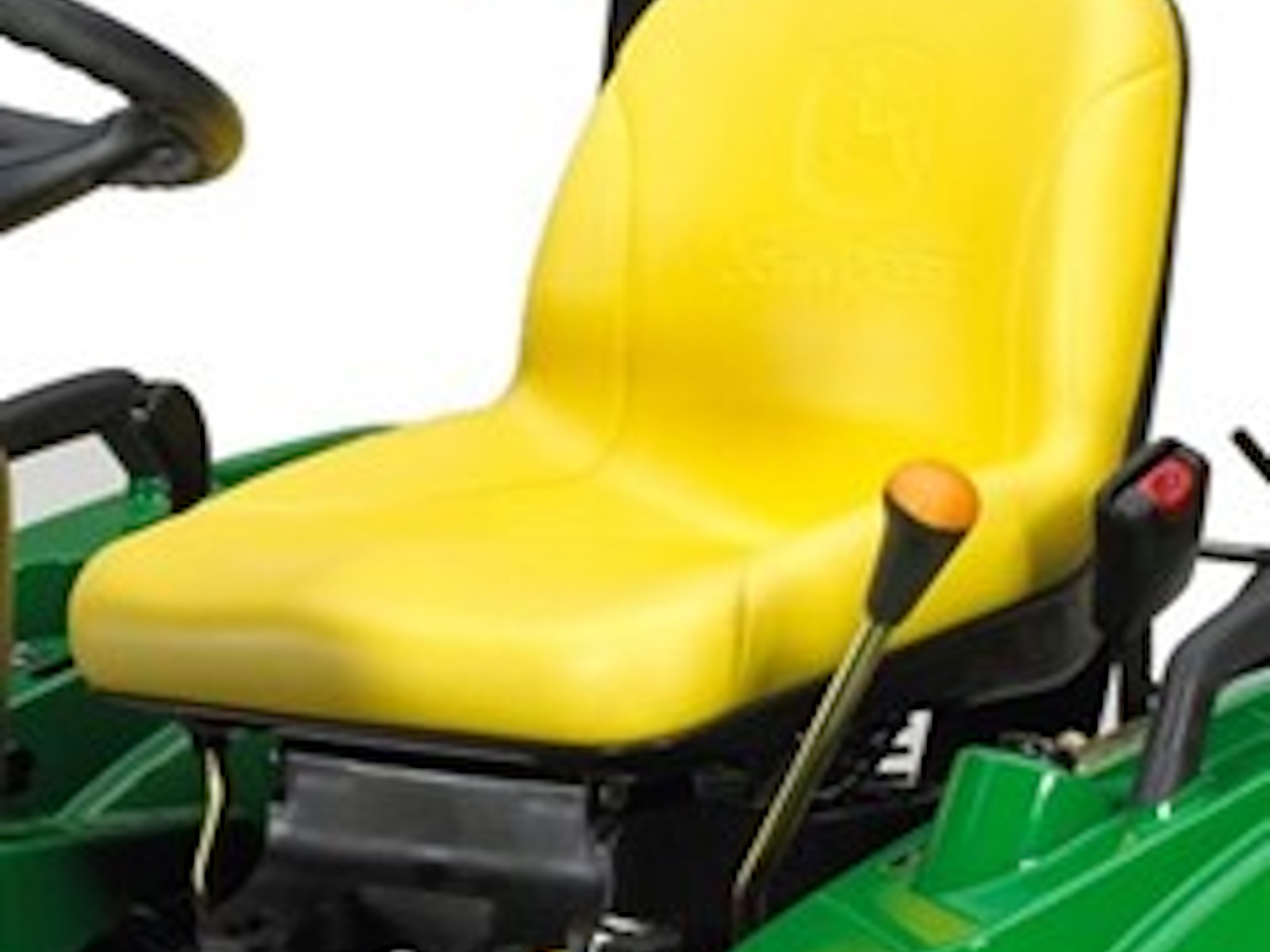

The spring suspension seat adjusts fore/aft for operator convenience. The seat adjustment lever is located in the center under the seat area. The seat flips forward for protection from the elements.

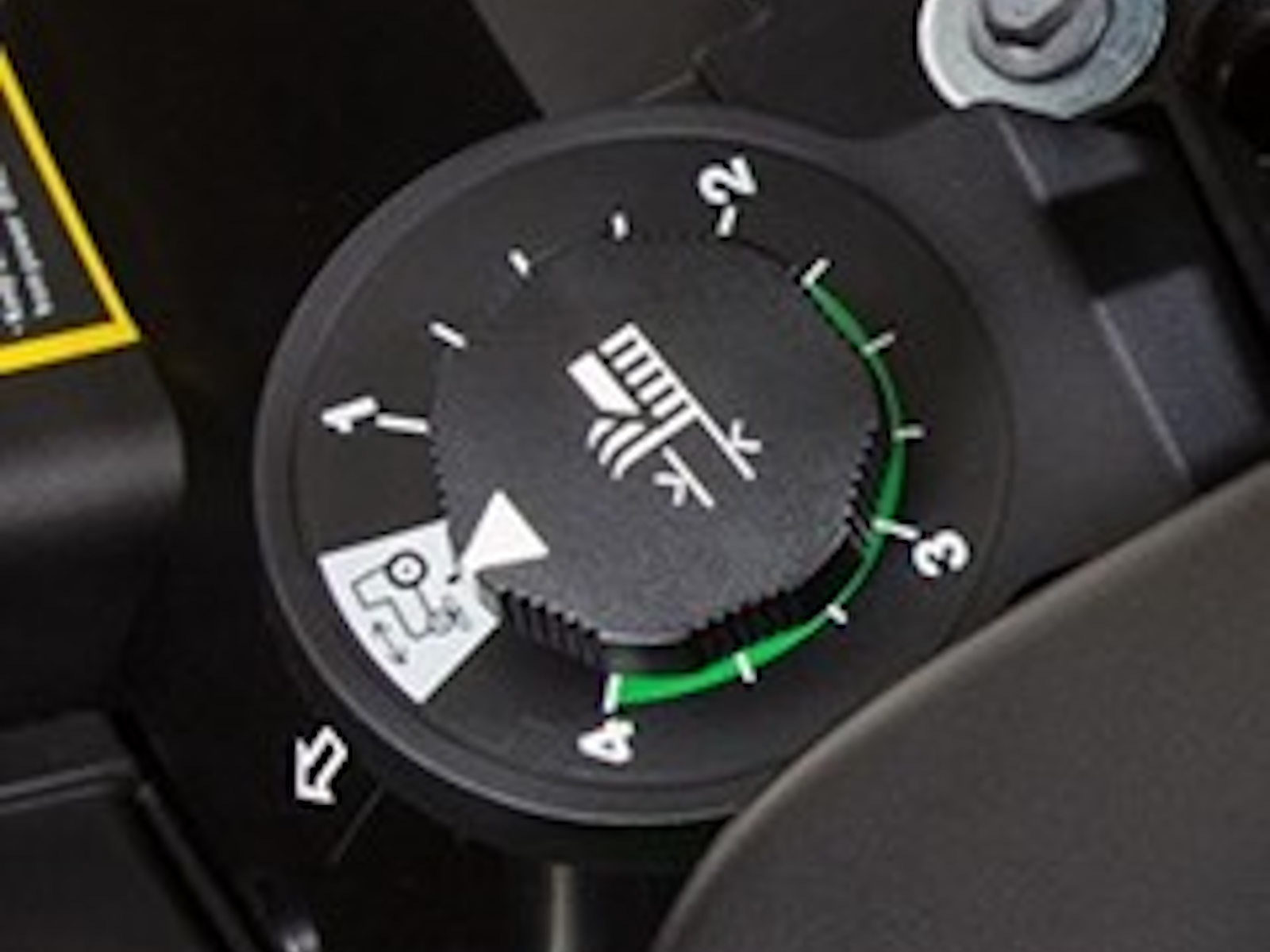

• The mower deck height-adjustment knob allows the mower height to be adjusted from 2.5 cm to 10.2 cm (1 in. to 4 in.).
• A spring-loaded detent ensures the height position is locked into place.
• The transport lock position holds the deck 10.2-cm (4-in.) from the ground, so that rear implements can be used separately while the mower is installed.

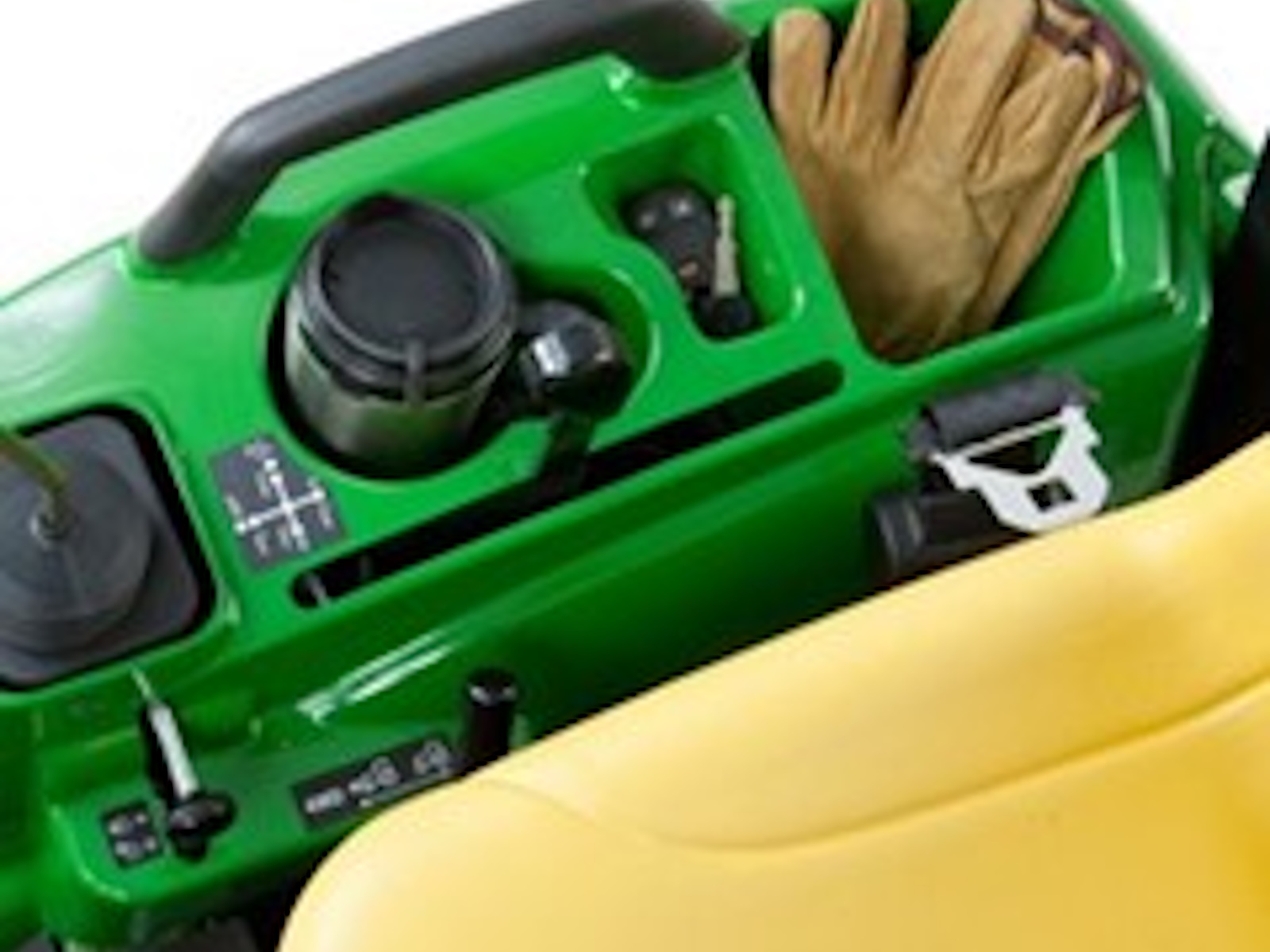

The beverage holder is contour-molded and seated into the fender for a clean look. It is conveniently located and dual-sized to accommodate many containers. The placement of the cup holder is within arm's reach.

Additional storage is conveniently placed into the fender for loose items like keys and work gloves.

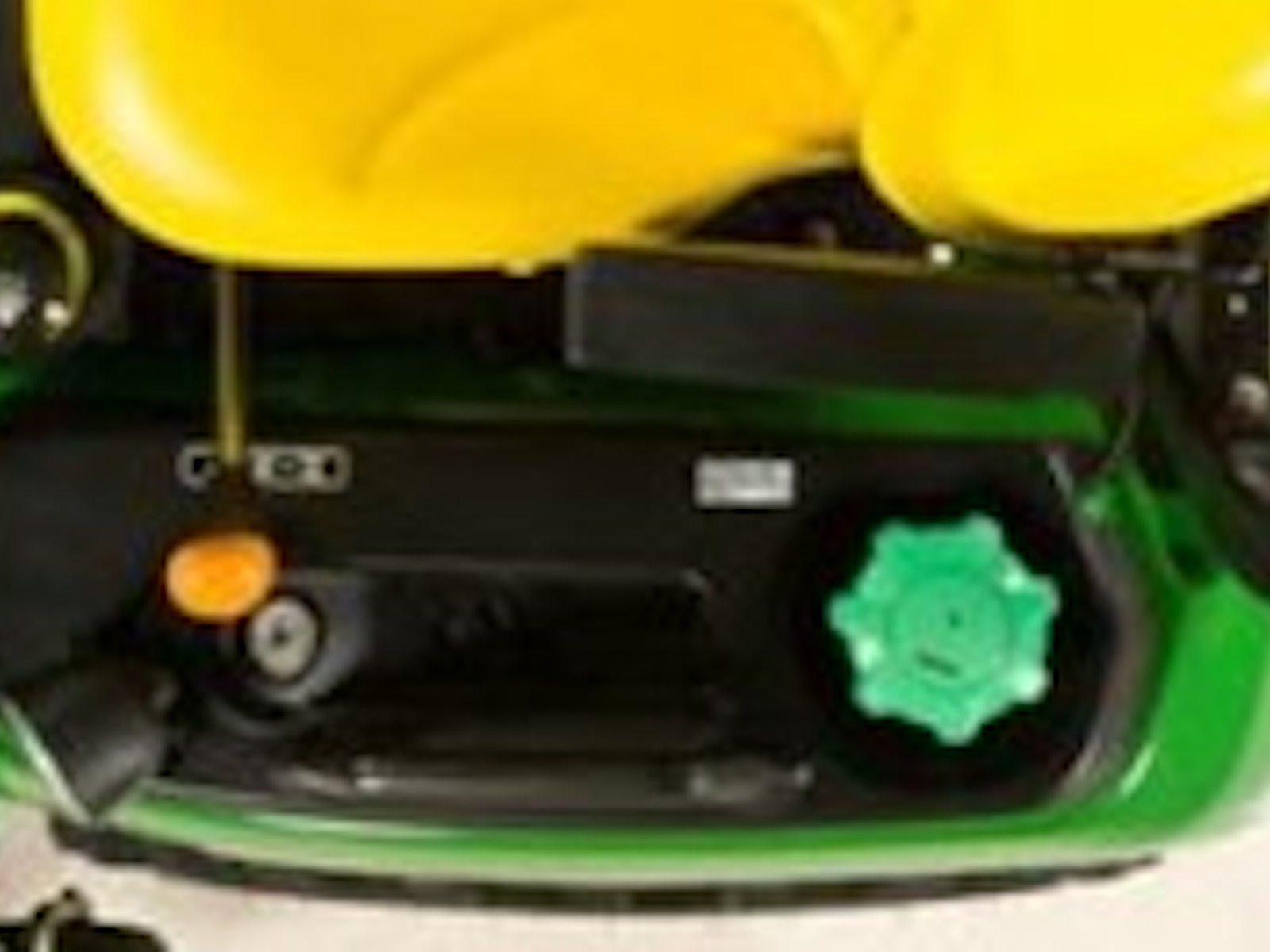

The fuel fill location is conveniently accessible on the left-hand side fender. The fuel gauge is located in close proximity to make the fuel refilling process easier.

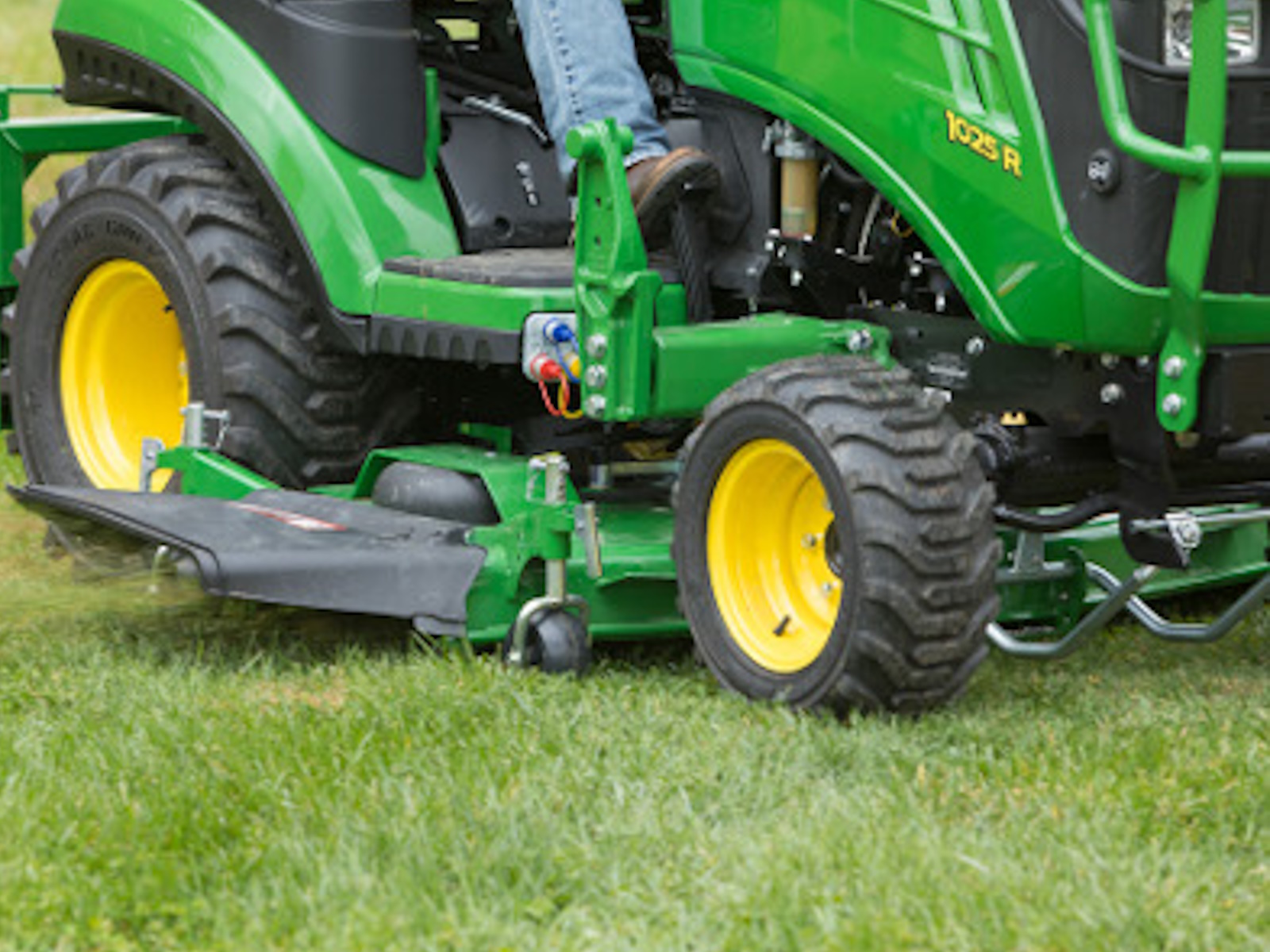

Flexibility in operation with multiple mid-mower lift system options

Mid-mower lift system options

Standard mechanical mower lift

• The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.

Optional hydraulic mower lift

• The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.

Optional independent hydraulic mower lift

• The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.

Know more about your tractor with Equipment Mobile and a John Deere Smart Connector

Overview

• Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.
• To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.
• You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.

Benefits

Equipment Mobile:

• Quickly scan the PIN to access maintenance, parts, and manual information
• Conveniently access and share Diagnostic Trouble Codes for troubleshooting
• Receive maintenance reminders and parts recommendations to minimize downtime
• Access equipment that is already loaded into your Operations Center account by logging into Equipment Mobile with your John Deere account login
• Create daily checklists to increase efficiency

Additional details

• Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.
• Users can still benefit from Equipment Mobile if they do not have a Smart Connector.
• Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.
