2022 John Deere 5065E

That’s what you can expect with our 5 and 6 Series Tractors. From working livestock to snow removal, for hay producers to municipalities, these chore tractors bring the horsepower and versatility so you can haul, mow, bale and so much more.

Features May Include:

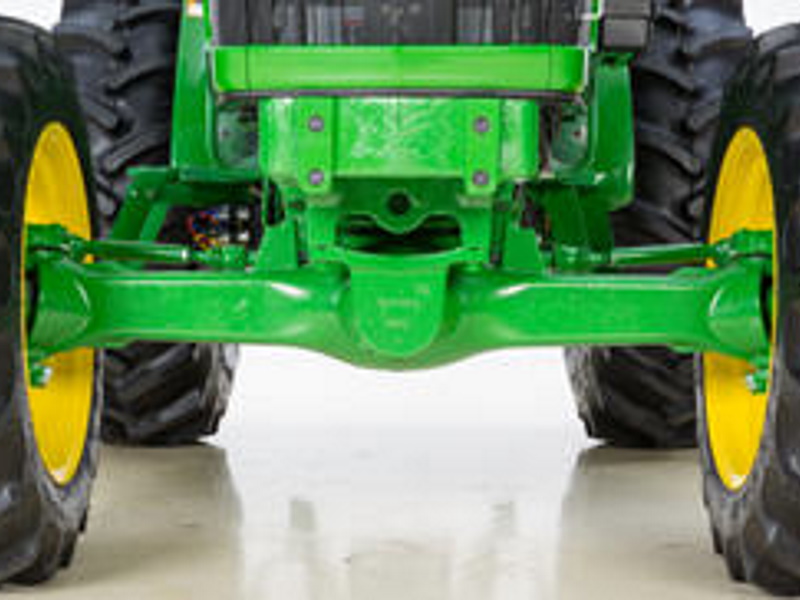

• A durable, mechanical front-wheel drive (MFWD) axle increases traction in tough conditions

Limited-slip, heavy-duty MFWD front axle will provide operators with increased drawbar pull and improved traction when operating in slippery conditions. This ensures the operator gets the required torque to the ground for applications that demand more from the tractor. The MFWD front axle also reduces wheel slippage with less tractor ballasting for reduced soil compaction, increased fuel economy, and longer tire life.

• The MFWD centerline design provides excellent maneuverability around the worksite and more crop clearance so producers aren't driving down their crop or profits. Additional versatility is proven when wheel treads are adjusted with 6 degrees of caster angle and a 55-degree turn angle, which results in a turning radius as short as 3 m (9.9 ft) (brakes applied), allowing plenty of horsepower to turn around in tight places. 10 degrees of axle oscillation follows uneven terrain, allowing for consistent performance and comfortable ride.

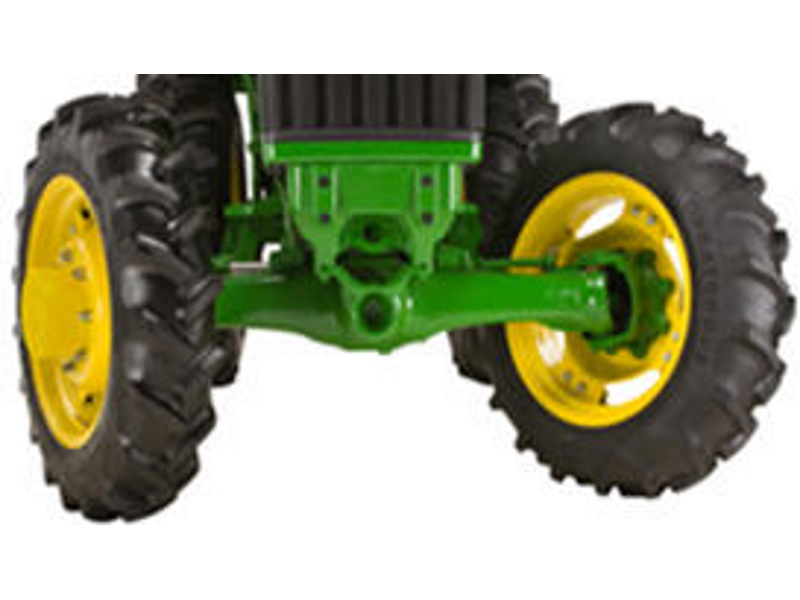

• Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab

• The front axle provides 10 degrees of axle oscillation, allowing the axle to follow uneven terrain for a consistent performance, comfortable ride, and reduced stress and maintenance costs on axle spindles.
• A 55-degree turn angle provides excellent maneuverability for high-torque tasks in tight spaces.
• The steering cylinder is bolted directly to the rear of the front axle, so the axle housing protects the steering cylinder from potential punctures created by rough terrain, rocky soil conditions, or thick crop material.

Broadening the 5E 3-Cylinder Tractor product lineup to offer a 2WD front axle in a cab configuration provides you with the well-known benefits of the 5E 3-Cylinder Tractors in conjunction with the ability to stay out of the elements and have the tighter turning radius that 2WD front axles provide.

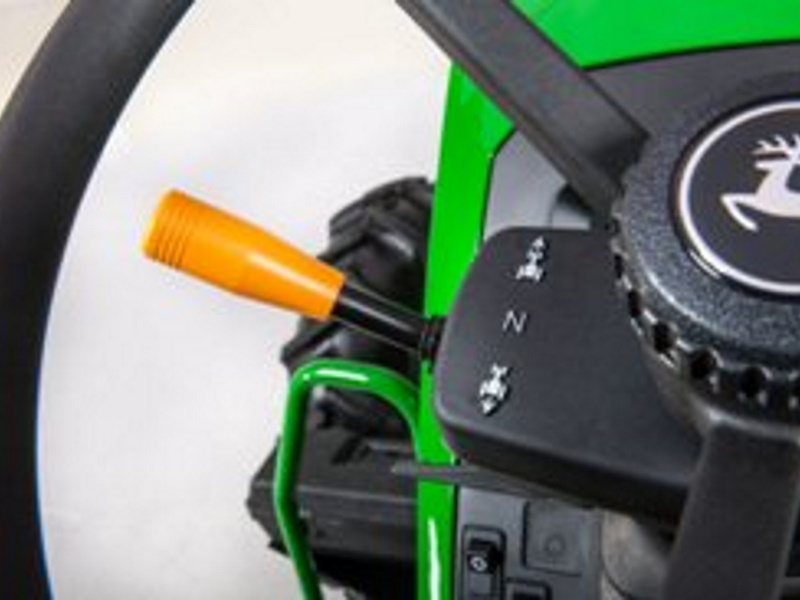

• Intuitive controls to aide in simple operation

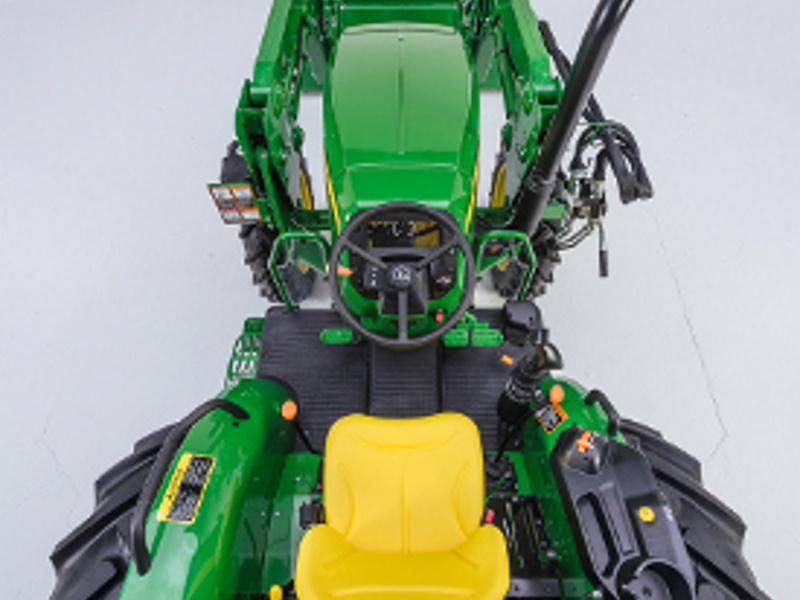

Operator comfort is important regardless of the application. Improving the 5E 3-Cylinder Tractor models, the hand throttle has been relocated to the right-hand console. This is 30.5 cm (12-in.) closer to the operator and within easy reach versus the previous location on the center-hand console. Operators may also notice the additional legroom provided by the repositioned loader controls, providing a more enjoyable experience.

• 9F/3R SyncShuttle™ transmission - An easy-to-use transmission which saves time and effort

The SyncShuttle transmission is designed to match the excellent power and torque characteristics of the John Deere PowerTech™ engines. Transmission durability is enhanced with the pressure-lubricated top shaft, allowing an operator to achieve performance from one working season to the next. Additionally, this in-base transmission is configured with fixed draft links, single-speed power take-off (PTO) and mechanical PTO engagement.

The transmission is characterized as full top shaft synchronized (TSS) when forward shifting on-the-go between speeds, and is characterized a synchronized while depressing the clutch.

• 12F/12R PowrReverser™ transmission is ideal for demanding applications

The John Deere-built PowrReverser transmission provides 12 forward and 12 reverse gears for operators requiring additional flexibility for multiple applications. It comes standard with shiftable 540/540 Economy power take-off (PTO) and electronically activated, telescoping draft links. This transmission is ideal for operators using their tractors to perform in versatile applications.

Hydraulic wet forward and reverse clutches maximize durability and will outlast the life of any dry clutch. When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs.
